Bridge

How exactly does the PAYMILL bridge work and what are its features? These and similar questions are answered in this section.

1. Integrating the PAYMILL JS Bridge

You can find an introduction for this in the payment form documentation. Besides this, you can integrate the following code on your page:

<script type="text/javascript" src="https://bridge.www.paymill.org/"></script>



Important notice:

Due to frequent demands of our customers in terms of timeout problems with inserting our JavaScript solution: it may take longer as a manually configured timeout of e.g. 3000ms if a response from the server will be sent back to you.

Therefore please specify no fixed timeouts in the JavaScript code of your page, as it would otherwise lead to problems and will take the reponse from server to different lengths!

2. Creating a Token

The createToken function creates a unique token, which you can transfer to your server and use for charging the purchaser without any second thoughts regarding security:

paymill.createToken({
  number:         $('.card-number').val(),       // required
  exp_month:      $('.card-expiry-month').val(), // required
  exp_year:       $('.card-expiry-year').val(),  // required
  cvc:            $('.card-cvc').val(),          // required
  amount_int:     $('.card-amount-int').val(),   // required, e.g. "4900" for 49.00 EUR
  currency:       $('.currency').val(),          // required
  cardholder:     $('.card-holdername').val()    // optional
},
paymillResponseHandler);



Mandatory fields:

The JSON object has to contain the following mandatory fields for the paymill.createToken function:

number : The credit card number has to be a string without any spaces.
exp_month : Two-digit month number for the expiration date
exp_year : Four-digit year number for the expiration date
cvc : 3-digit check number
amount_int : Transaction amount in the smallest currency unit (integer), e.g. 345 for 3.45 €
currency : Three character currency code (ISO 4217) of the transaction, eg. EUR or GBP

Optional fields:

cardholder : Name of the cardholder

ResponseHandler functionality:

If an error results from entering the credit card, an error report is displayed on the website. If the process is successful, you will have to add the token to your payment form and transfer it to your server.

Have a look at a complete example of the paymillResponseHandler in the following sample code:

  function paymillResponseHandler(error, result) {
    if (error) {
      // Displays the error above the form
      $(".payment-errors").text(error.apierror);
    } else {
      var form = $("#payment-form");
      // Output token
      var token = result.token;
      // Insert token into form in order to submit to server
      form.append(
      "<input type='hidden' name='paymillToken' value='" + token + "'/>"
      );
      // Submit form
      form.get(0).submit();
    }
}



The result of a successful request is a token object like to following:

{
  "token": "098f6bcd4621d373cade4e832627b4f6",
  "bin": "427346",
  "binCountry": "DE",
  "brand": "VISA",
  "last4Digits": "1111",
  "ip": "82.135.34.186",
  "ipCountry": "de"
}



If an error occurred, the response is given as follows:

{
  "apierror": "error_code"
}



Notice:

The token has a maximum length of 32 chars and expires after 5 minutes, for creating a transaction with it. For the following transactions the corresponding payment object should be used, which expires after 13 months. If the expiry date of the credit card is lower, the expiry of the payment object is being reduced accordingly.

3. Data validation

In order to validate the data from your website, you simply use the validation features integrated in PAYMILL. For example, your credit card number and the expiration date are verified here. You can find detailed information on this in the payment form .

4. How do I test specific error codes?

The following general error codes can be returned independent of the payment method:

internal_server_error : Communication with PSP failed
invalid_public_key : Invalid Public Key
invalid_payment_data: not permitted for this method of payment, credit card type, currency or country
unknown_error : Unknown Error

The following errors can be returned in the case of credit card payment

3ds_cancelled : Password Entry of 3-D Secure password was cancelled by the user
field_invalid_card_number : Missing or invalid creditcard number
field_invalid_card_exp_year : Missing or invalid expiry year
field_invalid_card_exp_month : Missing or invalid expiry month
field_invalid_card_exp : Card is no longer valid or has expired
field_invalid_card_cvc : Invalid checking number
field_invalid_card_holder : Invalid cardholder
field_invalid_amount_int : Invalid or missing amount for 3-D Secure
field_invalid_amount : Invalid or missing amount for 3-D Secure deprecated , see blog post
field_invalid_currency : Invalid or missing currency code for 3-D Secure

Following error codes can be returned with direct debit:

field_invalid_account_number : Missing or invalid bank account number
field_invalid_account_holder : Missing or invalid bank account holder
field_invalid_bank_code : Missing or invalid bank code
field_invalid_iban : Missing or invalid IBAN
field_invalid_bic : Missing or invalid BIC
field_invalid_country : Missing or unsupported country (with IBAN)
field_invalid_bank_data : Missing or invalid bank data combination

5. 3-D Secure

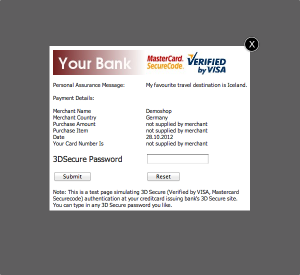

If a credit card, which is activated for 3-D Secure is used, the customer has to enter it's password on the bank's website. This process must be completed during the creation of the token. For this reason, an iFrame is displayed during the creation of the token, which enables to enter the password, which is placed in the middle of the page.

You can customize the look and feel of the iframe to match your website by providing two callbacks to the createToken method, named tdsInit and tdsCleanup in the following example:

paymill.createToken(params, paymillResponseHandler, tdsInit, tdsCleanup);



The parameters tdsInit and tdsCleanup are callback functions specified by your code and they will be called to start or end the process.

tdsInit(redirect, cancelFn)

tdsInit is called when 3-D Secure has to be initiated. Here you have to open an iframe or popup window and load the page described by the redirect parameter. If your customer cancels the 3-D Secure processing by clicking a button provided by your customization you should call the cancelFn function to correclty cancel the 3-D Secure processing.

cancelFn : a function to be called when the user cancels the process.
redirect : an object containing the following keys

url : the url to open in your iframe/popup
params : an object containing the parameters to be passed to the iframe (url encoded)

Note: the parameters have to be passed using a POST request.

var tdsInit = function tdsInit( redirect, cancelCallback ) {
var url = redirect.url, params = redirect.params;
var body = document.body ||  document.getElementsByTagName('body')[0];

var iframe = document.createElement('iframe');
body.insertBefore(iframe, body.firstChild);

var iframeDoc = iframe.contentWindow ||  iframe.contentDocument;
if (iframeDoc.document) iframeDoc = iframeDoc.document;

var form = iframeDoc.createElement('form');
form.method = 'post';
form.action = url;

for (var k in params) {
var input = iframeDoc.createElement('input');
input.type = 'hidden';
input.name = k;
input.value = decodeURIComponent(params[k]);
form.appendChild(input);
}

if (iframeDoc.body) iframeDoc.body.appendChild(form);
else iframeDoc.appendChild(form);

form.submit();
};



paymill.config('3ds_cancel_label', 'cancel');

With paymill.config('3ds_cancel_label', 'cancel'); you're able to name your label as you want it to be.
